FORM FILL SEAL (FFS)
FFS
FFS - 003D MACHINE
Basic Features
- Designed for Small Volume Parenteral (SVP) applications (0.2–30 ml)
- High-speed, reliable production performance
- Compact cGMP design for sterile installation
- Touch-screen HMI for easy operation
- Quick mould change for flexible formats
- Low maintenance & high reliability for 24×7 use
Technical Features
- Servo-Hydraulic and All-Electric (Servo) versions available
- Servo-Hydraulic controlled motions for smooth and precise operation
- Active & Passive Air sampling system with online particle counter
- Integrated with Siemens PLC & SCADA automation
- Auto CIP/SIP system with data printout and batch report
- Data logging, audit trail, and cloud backup for traceability
- Real-time velocity and Differential pressure monitoring
- Built-in air and water filtration for sterile production
- FDA 21 CFR Part 11 & EU Annex 1 compliant
- Safety interlocks and emergency stop system
- Compact electrical cabinet with efficient cooling layout
- Modular design for easy maintenance and upgrades
- Provision of Ultrasonic / cold knife cutter for accurate parison cutting
- Optional RMS (Remote Monitoring System) for online monitoring and analytics

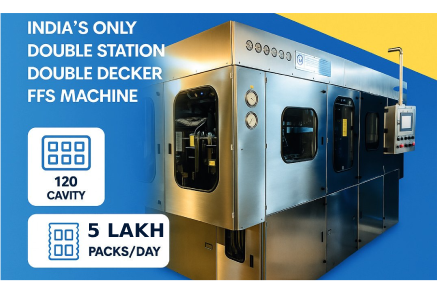

INDIAS DOUBLE STATION DOUBLE DECKER (SVP)
| PRODUCTS | WFI | EYE DROP | WFI |
|---|---|---|---|
| MODEL 003D | 5 ML / 10 ML | 5 ML / 10 ML | 20 ML / 30 ML |
| MOLDS | DOUBLE | DOUBLE | DOUBLE |
| CAVITIES | 120 | 48 | 48 |
| CAPACITY / HR | 21000 | 10000 | 10000 |
| SEMI AUTOMATIC MACHINE | ||
|---|---|---|
| LENGTH (MM) | WIDTH (MM) | HEIGHT (MM) |
| 3800 | 3800 | 2900 |
| ROOM SIZE RECOMMENDED | ||
|---|---|---|
| LENGTH (MM) | WIDTH (MM) | HEIGHT (MM) |
| 6055 | 6100 | 4000 |
Basic Features
Designed for SVP applications with filling range from 0.2 ml to 30 ml
User-friendly operation with full-color touch screen interface
High-speed production for enhanced output and efficiency
Compact and space-saving design, compliant with cGMP standards
Ensures zero cross-contamination with aseptic processing
